K25 series open type cable chain
Type | Inner(mm) | Outer(mm) | Bending radius(mm) | Pitch (mm) |
2500.038. .0 | 38 | 54 | 55 75 100 125 | 45 |
2500.057. .0 | 57 | 64 | 55 75 100 125 | 45 |
2500.077. .0 | 77 | 89 | 55 75 100 125 | 45 |
2500.103. .0 | 103 | 114 | 55 75 100 125 | 45 |
K25 series closed type cable chain
Type | Inner(mm) | Outer(mm) | Bending radius(mm) | Pitch (mm) |
2550.038. .0 | 38 | 54 | 55 75 100 125 | 45 |
2550.057. .0 | 57 | 73 | 55 75 100 125 | 45 |

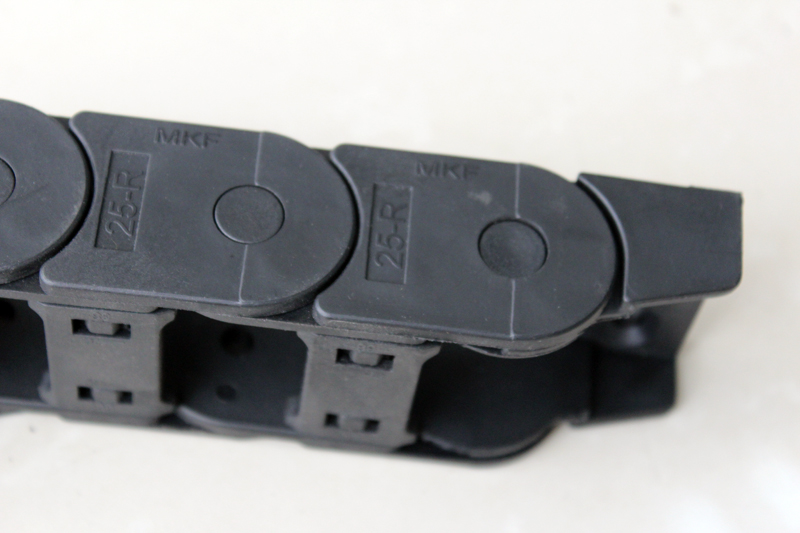

Detailed picture
