KOMAY Festoon Systems support conductor cables(flat or round) and hoses (hydraulic and pneumatic application for delivering power & control to mobile equipment in a safe, efficient and maintenance free method.
The cable trolleys are well guided inside their C-tracks and protected against humidity, dust and icing.

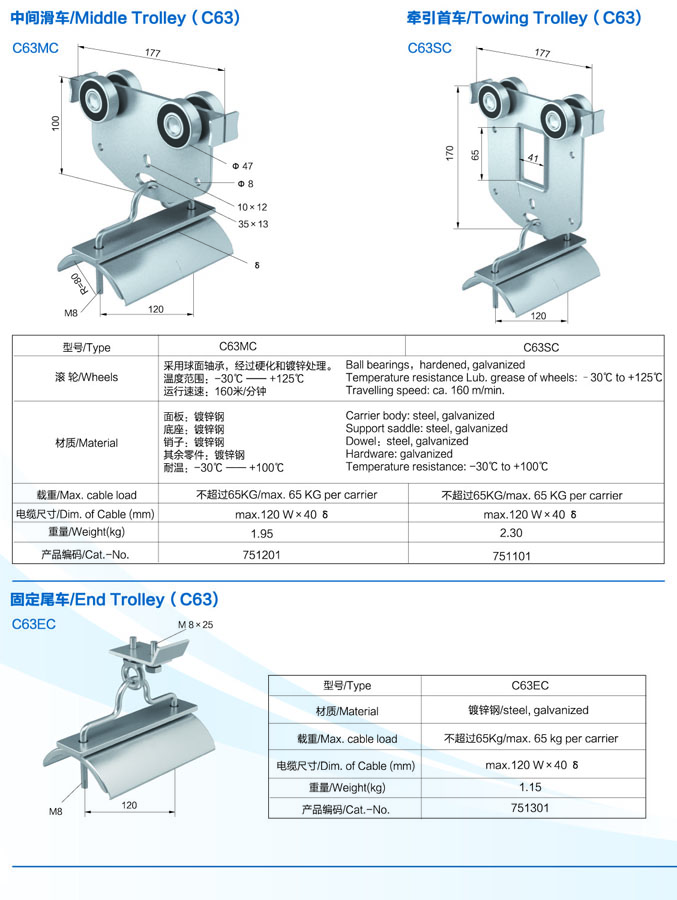

KOMAY cable trolleys not only deliver power and control to mobile equipment which has reciprocal motion but also support large quantities of data cables including optic fibers traveling independently from the mobile machinery. The relevant control carriers with and without push button lifting are also shown in this catalog.
型號/Type | C32*30*5 | C40*40*2.0 | C63*63*4.0 | C30*28*1.5 |
產品編碼Cat.-NO | 710116* | 720116* | 750116* | 700116* |
材質/Material | Galvanized steel/鍍鋅鋼(熱鍍鋅處理，C63系列外) | |||
重量/Weight Kg/m | 1.19 | 2.00 | 5.98 | 1.03 |
軌道參數/Technical data | ||||
A | 32 | 40 | 63 | 30 |
B | 30 | 40 | 63 | 28 |
C | 12 | 13 | 18 | 10 |
δ | 1.5 | 2.0 | 4.0 | 1.5 |
懸吊間距/Spacing | 所能承受的最大負載/Max. Cable Load | |||
1.5m | 89kg | 188kg | 503kg | 70kg |
2.0m | 51kg | 103kg | 425kg | 36kg |
2.5m | 39kg | 73kg | 302kg | 22kg |
3.0m | 23kg | 49kg | 195kg | - |
4.0m | - | 28kg | 85kg | - |
